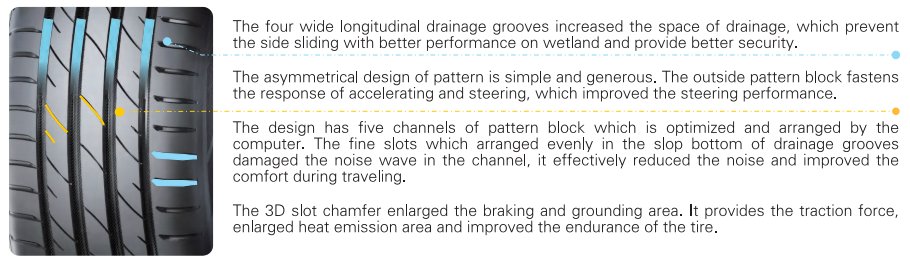

The four wide longitudinal drainage grooves increased the space of drainage, which prevent the side sliding with better performance on wetland and provide better security.
The asymmetrical design of pattern is simple and generous. The outside pattern block fastens the response of accelerating and steering, which improved the steering performance.
The design has five channels of pattern block which is optimized and arranged by the computer, The fine slots which arranged evenly in the slop bottom of drainage grooves damaged the noise wave in the channel, it effectively reduced the noise and improved the comfort during traveling.
The 3D slot chamfer enlarged the braking and grounding area. lt provides the traction force.enlarged heat emission area and improved the endurance of the tire.
Size | Load Index /PR | Speed | Standard Rim | Inflatable Section Width (mm) | Inflatable Overall Diameter(mm) | Loading Capacity (single/dual)(kg) | Inflation Pressure (kPa) | |||||||||||||||||||||||||||
215/55R17 | 98XL | V | 7J | 226 | 668 | 750 | 340 | |||||||||||||||||||||||||||
215/50ZR18 | 96XL | W | 7J | 226 | 673 | 710 | 340 | |||||||||||||||||||||||||||
225/60R18 | 104XL | V | 6 1/2J | 228 | 727 | 900 | 340 | |||||||||||||||||||||||||||
235/50R19 | 99 | V | 7 1/2J | 245 | 719 | 775 | 300 | |||||||||||||||||||||||||||
245/45ZR19 | 102XL | W | 8J | 243 | 703 | 850 | 340 | |||||||||||||||||||||||||||
255/55R19 | 111XL | V | 8J | 265 | 763 | 1090 | 340 | |||||||||||||||||||||||||||
245/45R20 | 103XL | V | 8J | 243 | 728 | 875 | 340 | |||||||||||||||||||||||||||
255/50R20 | 109XL | V | 8J | 265 | 764 | 1030 | 340 | |||||||||||||||||||||||||||
265/45ZR21 | 108XL | W | 9J | 266 | 771 | 1000 | 340 |
